DxH 560 AL Hematology Analyzer

Small and mighty from a family with proven reliability and comprehensive data management all in a compact size.

Save time and resources, eliminate manual intervention and deliver high-quality results, even for difficult-draw patient groups, with the DxH 560 AL Hematology Analyzer.

The DxH 560 is an easy-to-use 5-part differential instrument that is designed with an integrated touch screen and only one external reagent for flexible instrument placement in labs, where space is at a premium. With automated daily tasks, sample rerun, a high load-and-go tube capacity and only three reagents to manage, the DxH 560 AL requires less of your time.

Comprehensive QA/QC and patient data management with paperless delivery propel your business forward by reducing clerical errors. Proprietary Dynamic-gating allows the DxH 560 AL to produce quality results for peace of mind.

Request Inquiry

Description

  • Extended QC (eQC): with onboard bias, precision and accuracy monitoring without the need for internet or extra fees
  • Reduce administrative errors and go paperless:: designed to work as hard as you do, the onboard data management in the DxH 560 can host up to 30,000 patient records—equivalent to a year’s worth of tests with typical usage
  • Keep analysis running smoothly throughout the day: store and manage just three reagents, with simple and quick replacement, compared to six reagents with other analyzers in its class

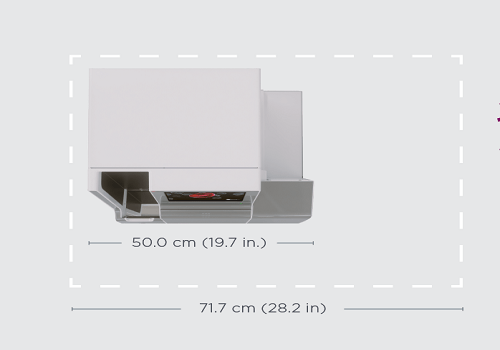

  • Test in tight spaces: with an integrated monitor and keyboard and only one external reagent, the DxH 560 requires up to 1/3 less laboratory counter space than other analyzers in its class

Deliver secure, high-quality, confident results with fewer unnecessary slide reviews within secure, expanded patient database capability

Ensure a more accurate 5-part differential with sophisticated flow cytometry with proprietary dynamic gating technology that reduces flagging by 40% compared to static gating. The sophisticated gating technology in the DxH 560 improves the identification of white blood cells (WBC) populations by automatically adjusting the thresholds between cell-cluster arrangements.(Figures 2a and 2b). More reportable results are seen with more challenging cell populations, such as lymphocytes and eosinophils, giving a more accurate 5-part leukocyte differential than static gating.

Reduce slide reviews with more reportable 5-part differential results while maintaining effective clinical sensitivity and good predicative values.

Easily retrieve patient records and conduct seamless delta checks with ample storage capacity – up to 30,000 patient samples. Reduce clerical errors, inefficiencies and risk with a secure bidirectional interface.

Protect patient data with industry-leading privacy and security features, including PHI encryption, account lockout thresholds and time-based instrument logouts.

Improve physician and patient satisfaction

  • With the first draw, meet the needs of difficult-draw patient groups such as infant, geriatric and oncology patients, without compromising on quality
  • Conserve precious samples from infant, geriatric, oncology and other difficult-draw patients. With the DxH 560, laboratories can deliver critical first results accurately, with an aspiration as little as 17 μL
  • Report pediatric results with confidence and with more accurate test result interpretation* based on comprehensive ranges established specifically for the DxH line — the first portfolio of hematology analyzers with comprehensive pediatric ranges
  • Provide peace of mind for your patients with industry-leading privacy and security features — including customizable user login and fully traceable automated timeouts – guarding patient electronic personal health information
Mode of Operation Autoloader, 50 tube continuous feed capacity, open-tube mode
Sample Volume 17 μL of venous or micro-collected whole blood
Throughput 55 closed-tube samples per hour, 60 open-tube samples per hour
Menu/Test Parameters WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, LY%, LY#, MO%, MO#, NE%, NE#, EO%, EO#, BA%, BA#
RUO Parameters IMM%, IMM#, LHD, MAF, PCT,PDW
Data Storage 30,000 patient results, including graphics, flags, codes and messages
QC Package 12 control files, each with a maximum of 150 runs, LJ plots, XB, XM and eIQAP with QC auto rerun
User Interface Integrated 8.4 inch high resolution color touch screen; Handheld barcode
Power Requirements
  • 100–240 VAC 50–60 Hz
  • Single phase with ground Less than 120W
Carryover <1.00% for WBC, RBC, HGB, PLT and 5-part differential
Ambient Temp/Altitude 18–32°C (64.4–89.6°F) / Up to 3,000 meters (9,842 feet)
Humidity 80% relative humidity (non-condensing) at 32°C (89.6°F)
Altitude Up to 3,000 meters (9,843 feet)
External Storage Supports USB 2.0 (five ports)
LIS Bidirectional interface supports Ethernet communication via RJ45 and Serial RS-232 communication
Printer Optional USB printer; laser or ink jet
Languages Czech, English, French, German, Iberian Portuguese, Italian, Japanese, Romanian, Spanish, Russian
Weight and Dimensions
  • WIDTH 500 mm (19.7 in.)
  • HEIGHT 440 mm (17.3 in.)
  • DEPTH 460 mm (18.1 in.)
  • WEIGHT 22.0 kg (48.5 lbs.)
