DxU 810c Iris Urine Chemistry Analyzer

Reliable urine chemistry results without interruptions

The DxU 810c Iris fully automated urinalysis chemistry analyzer delivers reliable results to your laboratory. It features continuous strip loading capability and high throughput with fast turnaround time, bringing a high-capacity urine chemistry analyzer to your laboratory.

Request Inquiry
Category:

Description

Maximize Laboratory Performance

The DxU 810c Iris urine chemistry system offers high-volume testing and ease-of-use to maximize laboratory performance and productivity
Continuous Strip Loading Capability and Throughput: Up to 210 samples per hour
Fast Turnaround Time: <2 minutes to first results and then every 15 seconds
Highly Reliable and Robust Data Storage: 300-strip load capacity and 10,000-patient record storage

Clinical Confidence Meets Ease-of-UseThe DxU 810c Iris urine chemistry instrument offers confidence to your lab and ease-of-use with excellent sensitivity and specificity in urine particle detection.

Enhance the Detection of  Interference

The DxU 810c Iris features an ascorbic acid test pad that identifies possible interference with key chemistry assays. This assay provides clinical confidence with an ascorbic acid detection that helps spot false-negatives or decrease results in blood, nitrite, bilirubin or glucose.

Comprehensive Menu

Evaluate nine standard urine chemistries plus ascorbic acid. The strip includes a color compensation pad to assist in reading highly pigmented samples. Color is read via absorbance, clarity by scattered light and specific gravity by refractometry.

Increase Uptime and Improve Productivity

iWARE Integrated Urinalysis Software solution, standard on the analyzer, combines onboard validation and result verification into a single step without the need for middleware. The software helps laboratories become more efficient by reducing time-consuming steps.

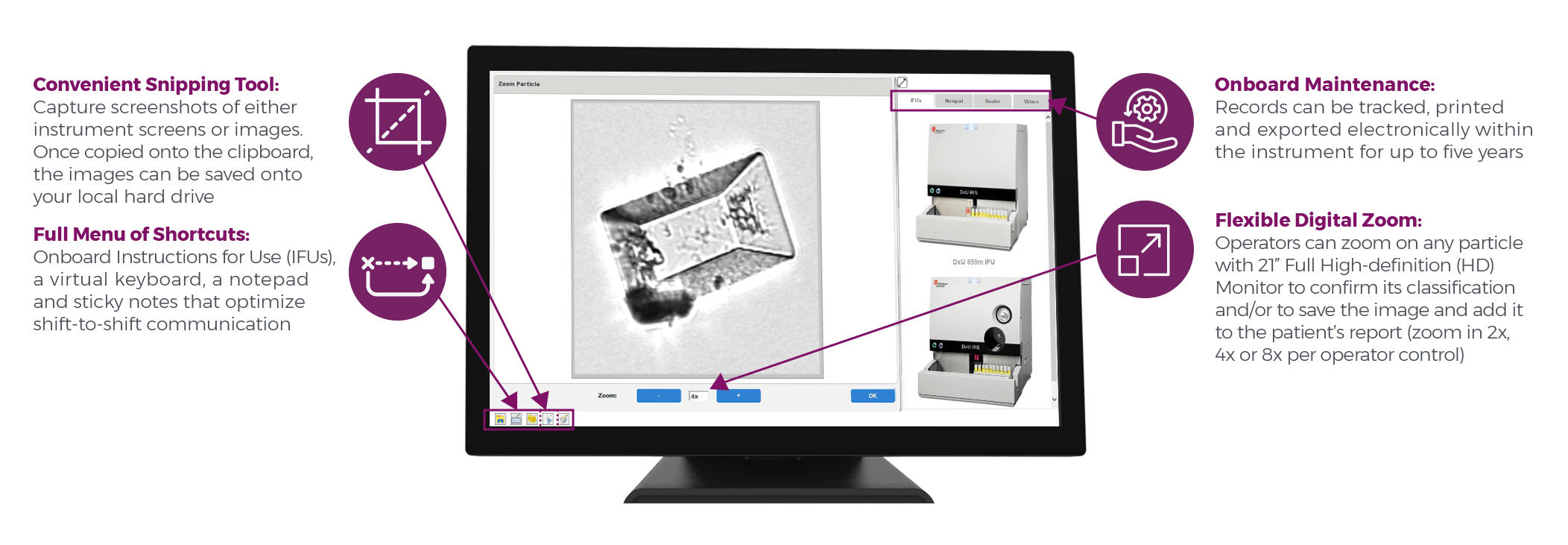

Intuitive Software Interface

A sleek, intuitive software user interface, a full menu of shortcuts and a beacon light helps identify system-status at-a-glance takes efficiency to another level. Optimize shift-to-shift communication with the system notepad and sticky notes. Boost productivity with onboard user and training manuals.

CHEMISTRY

Menu/Test parameters
  • Test Strip Parameters: Bilirubin, Urobilinogen, Ketones, Ascorbic acid, Glucose, Protein, Blood, pH, Nitrite, Leukocytes
  • System Parameters: Specific Gravity, Color, Clarity

Measurement technology
  • Specific Gravity: refractive index
  • Clarity: measured directly from scattered light
  • Color: measured by transmitted light in the sample using proprietary algorithms

Measurement wavelengths

 472 nm, 520 nm, 630 nm

Test strip

 DxU 810c Iris Urine Chemistry Strip, 100-test vial; Storage 36-86°F (2-30°C)

Test strip capacity

 1-300 test strips

Sample throughput

 Up to 210 samples per hour

Sample identification and capacity
  • Auto-ID barcode or keyboard entry of ID
  • 10-tube rack system
  • 60-specimen walk-away capability with continuous feed for each system as standalone or as DxU Iris Workcell; up to 200; L/U holds 140 samples and with 60 onboard this is 200

Specimen volume

 Minimum: 2 mL

Aspiration volume

 Approximately ~1mL

Data storage

 Onboard storage of up to 10,000 patient results

Communication interface

 Bidirectional with host query

Operating environment
  • Temperature: 64-82°F (18-28°C)
  • Humidity: 20-80%, non-condensing

Electrical power requirement

 100-240 VAC, 50-60 Hz, 3.5A

Dimensions and Weight
  • Width: 20.9"
  • Height: 23"
  • Depth: 25.4"
  • Weight: 100 lbs

Options

 Connection to DxU 850m/840m Iris, load/unload station, PROService, Command Central, Remisol Advance
